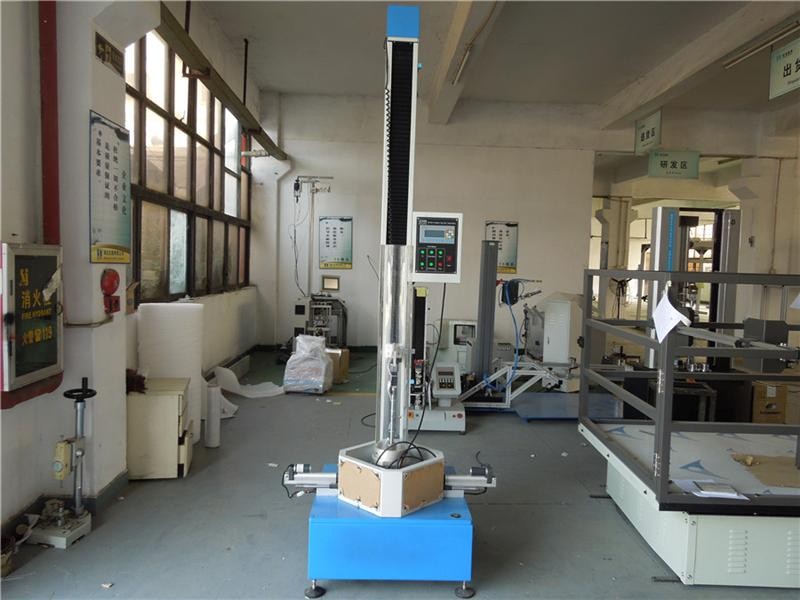

Automatically Falling Ball Impact Plastic Testing Machine With DC Solenoid Control

Name: Automatically Falling Ball Impact Plastic Testing Machine With DC Solenoid Control
Brand: HAIDA
Price: 1 USD

Wholesale Automatically Falling Ball Impact Plastic Testing Machine With DC Solenoid Control from china suppliers

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-R601

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

power : Electronic

Power : DC solenoid control

Port : 2m

Contact Now

Automatically Falling Ball Impact Plastic Testing Machine With DC Solenoid Control

Design Standards:

JIS-K6754, A5430, ISO 6603, BS4660, BS4514, BS3505, BS2782: 11 Part: Method 1108A,, ASTM D5420, ASTM D3029

Falling ball impact test machines

Falling ball impact test machine Product Description:

Falling ball impact test machines for plastic / ceramic / glass fiber and other materials fastness testing. Test method: falling ball impact test machine test method in order to provide the weight of the ball, adjust to a certain height, so that free fall against the specimen, depending on the extent of the damage, to determine quality. Falling distance of up to 2m, drop weight can be adjusted between 1.25kg to 10kg, can provide a variety of sample holder.

The main technical parameters:

Maximum height	2m
Falling Ball control	DC solenoid control
Ball Weight	357,533,1042,2280 g
Volume	50 × 50 × 210cm
Weight	about 30kg
Power source	220V/50HZ

Test method:

Drop hammer impact test machine / falling ball impact test machine: the impact energy by dropping height and weight is calculated as follows:
Hammer impact energy = weight (kg) * drop height (m) * g
g: acceleration due to gravity = 9.81m/s/s

Product Features:

1. unique design, or components used to assess the impact properties of the specimen
2. the drop height up to 2000mm, can produce the maximum 6.264m / s impact velocity
3. hammer weighing between 10kg 1.25kg maturity
4. Maximum impact energy of 196 joules

Automatically Falling Ball Impact Plastic Testing Machine With DC Solenoid Control
